Re-birth CPC roll
We have obtained high evaluation from steel industry with this epoch-making technology of re-birth of high performance work roll by a collaboration of FUJICO's original CPC process and welding technology.
Outline of the re-birth CPC roll
The work roll of a hot-strip mill is generally scrapped after the use of the discarding diameter. Thus, the re-birth of CPC rolls is a novel idea in which the scrapped roll from a customer can be re-birthed as a new roll.
In this method, the shell of the barrel that contacts the rolled product is re-cast using the CPC process.
Furthermore, a scrapped roll is re-birthed as a new roll by welding the journal, and this is supplied to the customer. This re-birth of work roll is an original technology acheived through the synergy of FUJICO's hardfacing technologies.

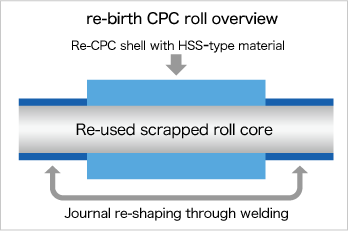

An overview of this re-birth of roll process is shown in the figure at right. A roll manufactured with this technology demonstrates the same performance as a new remanufactured CPC roll in all characteristics regarding wear resistance, surface roughening resistance and toughness.
Features of the re-birth CPC roll
- Economical supply of the highest-performance roll in the world
-
The CPC process is an ideal method for the manufacture of HSS rolls, and CPC rolls have the best quality and performance. Furthermore, it has become possible to supply the highest-performance roll in an economical way.
Cost-saving analysis of re-birth CPC roll
Roll Performance Manufacturecost（Price） Roll cost for rolled product Centrifugal casting good base base CPC Conventional excellent handicap even Recycled excellent even improved
- Achievement of a full recycling system for work rolls
- The roll recycling system is achieved by re-using a used roll as core material.
- Birth of environmentally-friendly eco-rolls
-
The recycling system for rolls and a reduction of CO2 emissions is achieved by this technology. Further, this roll type was authorized as an "eco-premium product" in 2009FY by Kitakyushu City.

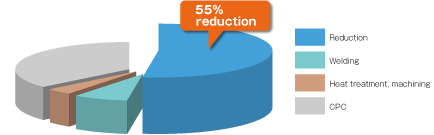

This new roll is simply an eco-type roll, and it contributes to the most important current social requirement. This re-birth of CPC roll has realized a high-performance roll with economical cost and price, and this technology has established a full recycling system for work rolls with 55% savings of CO2 emissions.
